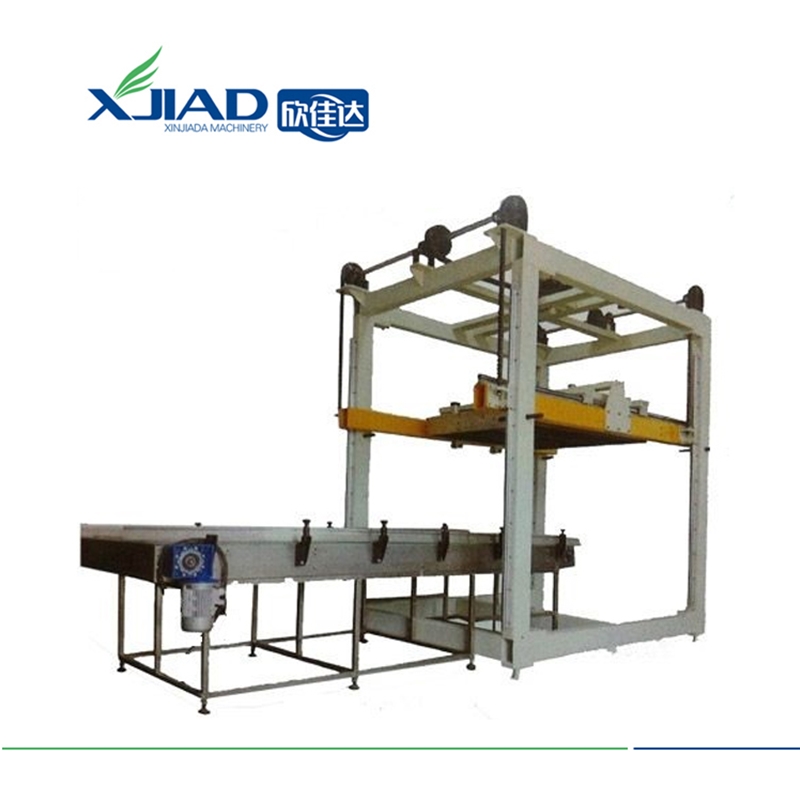

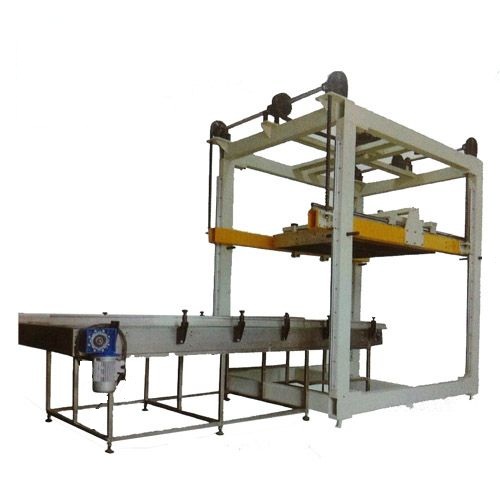

Magnetic low-order filled can depalletizer

Video                     Download

Magnetic type low-order filled can depalletizer with PLC computer controller, touch screen button (switch) for controlling system and for operation condition show, failure show, alarming. Empty pallet entering and filled pallet exiting operated by forklift. Man ancillary interlayer board taking. Automatically dsicharge products from the pallet to conveyor through unloading device. discharge can unloaded to the crib body products on the conveyor, repeating operation until all the can have been discharged to the production line conveyor.

。

Structure and functions:

4.1. Conveyor: products delivery, high quality plastic net chain.

4.2. Interlayer board stacking shelf, stacking interlayer board.

4.3. Discharging device: self-locking type elevator design, stratification, automatic locating height, motor drive.

4.4. Guard rail: with security barrier, Carbon steel wire net;

4.5. Electrical configuration: Siemens PLC programmable device, SICK photoelectric switch, SCHNEIDER (SCHNEIDER) trip switch, button, contactor, high-quality wire and cable, wire and tube, carbon steel trough.

Technical parameters:

5.1. Power supply: the power supply of 380 v * 3 50 Hz

5.2.Control source: 220 v * 50 Hz * 2

5.3.Power: 6-9 kw

5.4. Air source: pressure of 6 kg/cm2

5.5. Pallet size: 1000 mm x 1200 mm (customized)

5.6. Unloading height: 1400 mm (including the pallet height).
