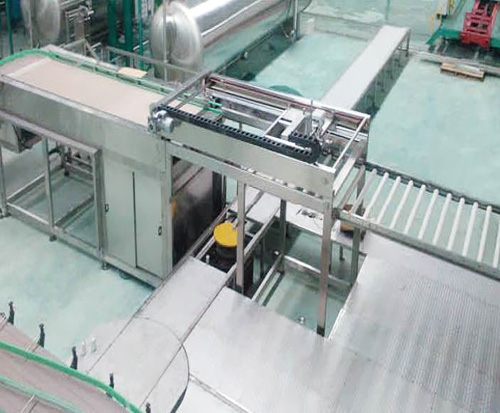

Our offered Automatic Unloader mainly applies to various types beverage cans or tin cans. It can unload the cans automatically after the second sterilization. Firstly the pneumatic device lift the filled cans ascending to same level with the conveyor, and then the pushing device push the cans to the conveyor layer by layer from the cage which is placed on the stack board. During the whole unloading process, the interlayer board comes out and goes up automatically, the sorting , unloading, dropping and stopping are all automatic. The machine taking the place of manually loading method, can save manpower and increase the production efficiency greatly.
1.Automatically layered, pushing and unloading functions.
2.Automatically coming out and collecting to stack mechanism of interlayer board.
3.Automatically and exactly locating device of unloading can layers.
4.Automatically layered and arranging leveling block.
5.Hydraulic pressure lifting system of unloading mainframe.
6.Locating device of sterilization cage.
7.Automatic stopping to unload when cans are empty.
8.Automatic stop alarm when cans are full.9.Use famous brand products, such as computer automatic controller of MITSUBSHI PLC programming and SICK photoelectric switch, benefiting from their steady equipment and superior function.
1.Production capacity: 500-1000 cans / min.
2.Available cans: every kind of tin can, aluminum can, glass bottle, plastic bottle, etc.
3.Available can diameter: 50-153mm.
4.Available can height: 50-270mm.
5.Motor power: 7KW.
6.Size(length×width×height): 4500×1500×1600mm.7. About weight: 3000kg.
