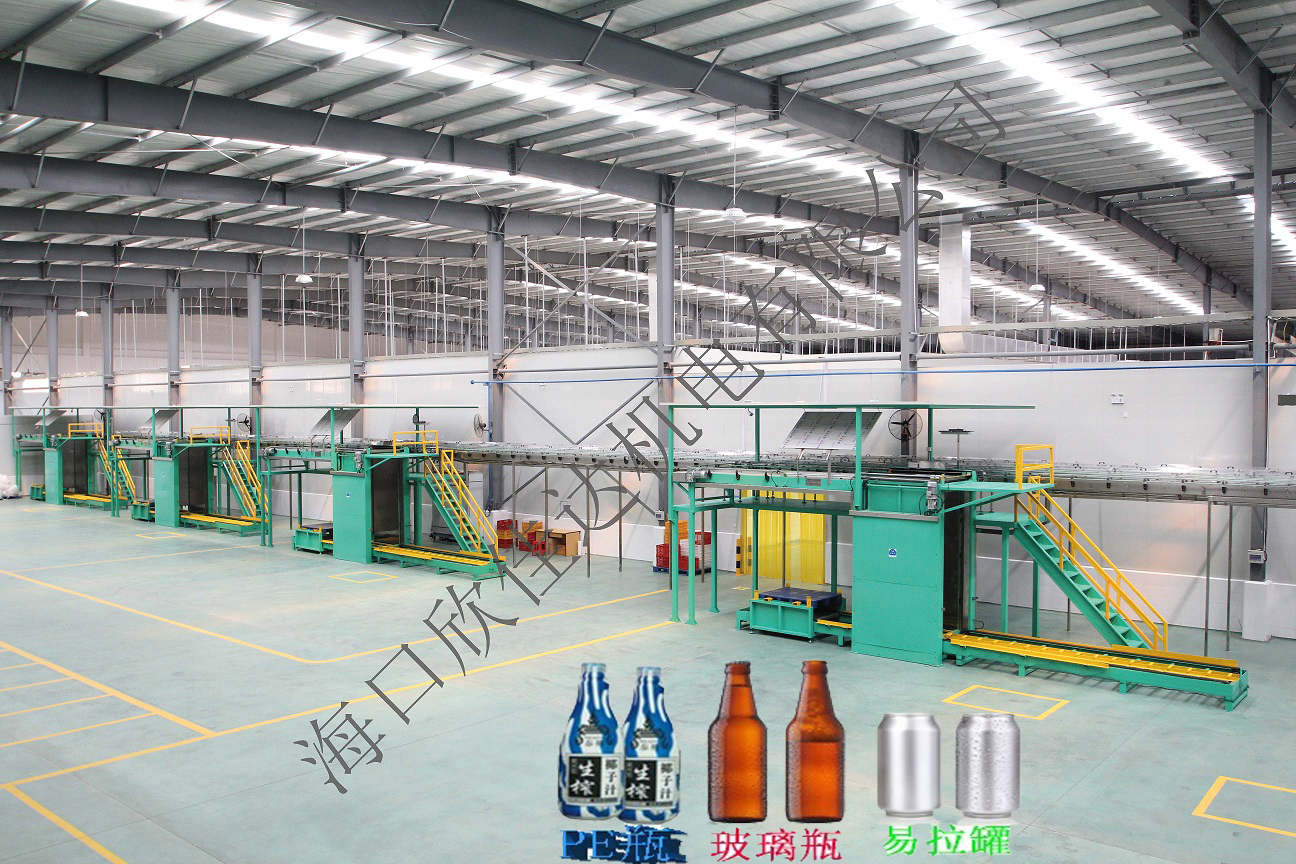

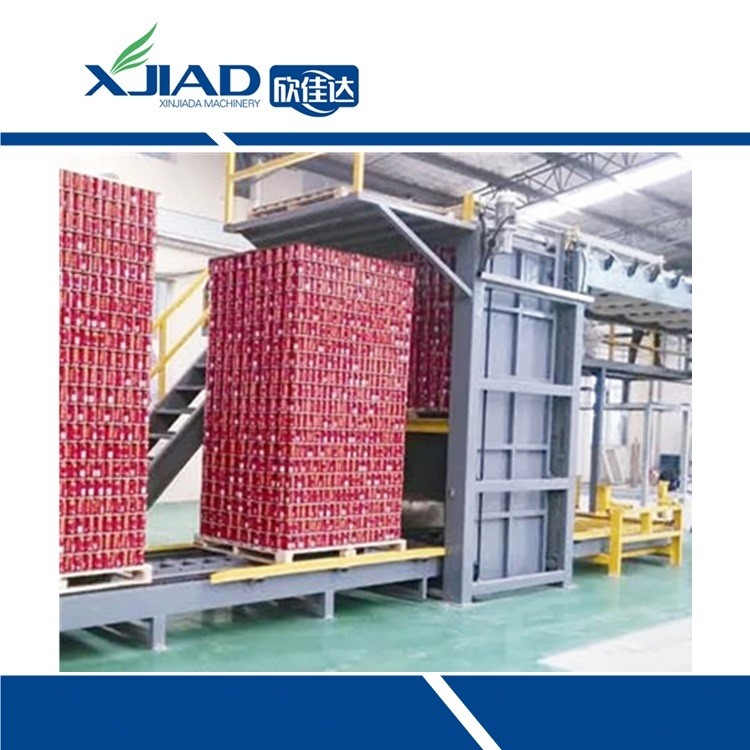

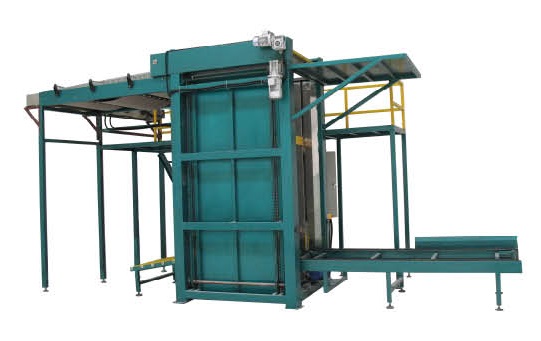

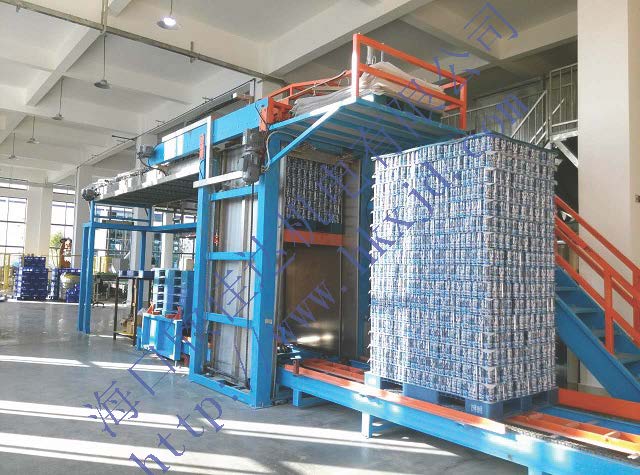

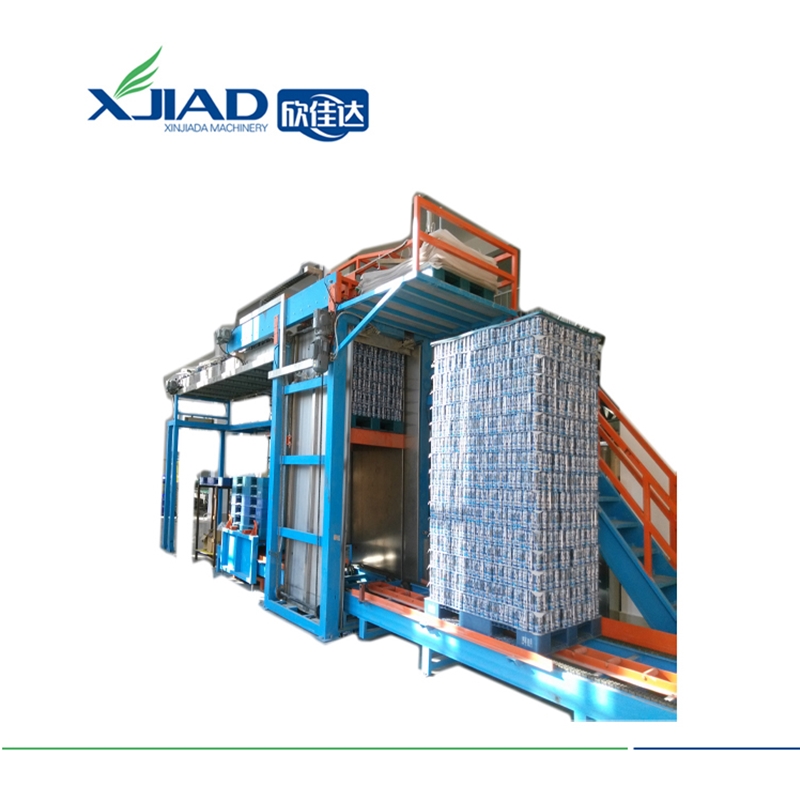

This machinery is suitable for all kinds of empty cans, like Pop-top, PE bottles, glass bottles automatic unloading to the production line conveyor, hen the empty can & bottle able to go ahead to the related processes empty can washing, Filling, Seaming, etc along the conveyor. Automatically control the whole process of empty can & bottle unloading through PLC computer programming. Multifunctional configuration mechanism, replace manual type unloading and semi-automatic can & bottle unloading equipment, save manpower, greatly improve production efficiency.

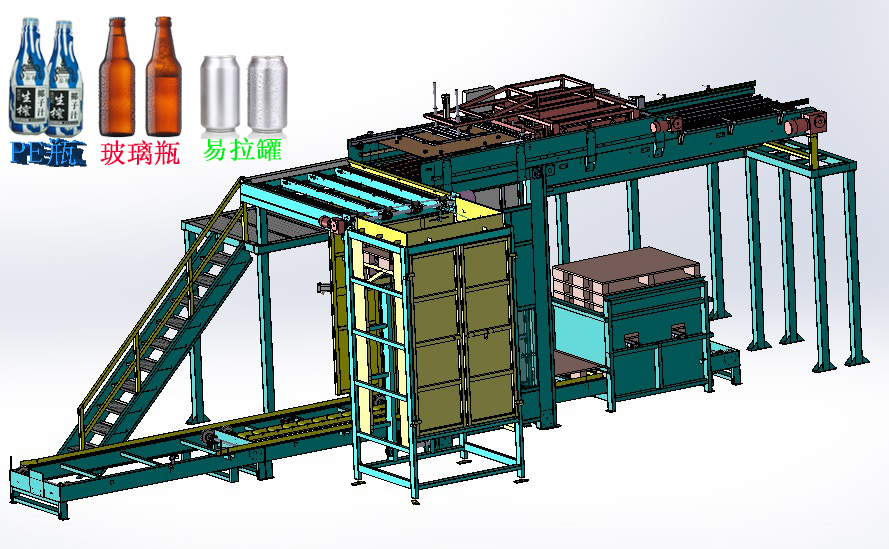

Device configuration:

1. Automatic discharge can & bottle, just need to put the whole pallet empty can & bottle onto the automatic roller chain conveyor.

2. Automatic hoisting while empty can & bottle discharged.

3. Automatic discharging empty can & bottle by equipment pushing.

4. Automatic buffering, automatic net chain can & bottle sorting row by row.

5. Automatic stacking empty pallet.

6. Ground chain conveyor for filled can & bottle pallet.

7. Ground chain conveyor for empty pallet.

8. Automatic Interlayer board removing device.

9. Automatic stopping when cans are full / Automatic delivering when cans are lacking.

10. Automatic stop warning when cans are full.

11. Using MITSUBISHI (MITSUBISHI) automatic PLC programmable computer controller, (SICK) photoelectric switch etc. famous brand products, equipment stability, superior performance.

Technical parameters:

1. Production capacity: 500 ~ 1200 cans per minute

2. Using range: all kinds of tinplate cans, aluminum cans, glass bottles, plastic bottles, etc.

3. Applicable can & bottle size: diameter of 50 mm to 153 mm

4. Applicable height: 50 mm to 270 mm high

5. Motor power: 7 kw

6. Overall dimensions (length x width x height) : 11000 * 3000 * 3000 mm

7. Weight: 4200 kg
