Film winding machine
Film winding machine
Film winding machine Film winding machine Film winding machine Film winding machine Film winding machine Film winding machine
Details
Summary:

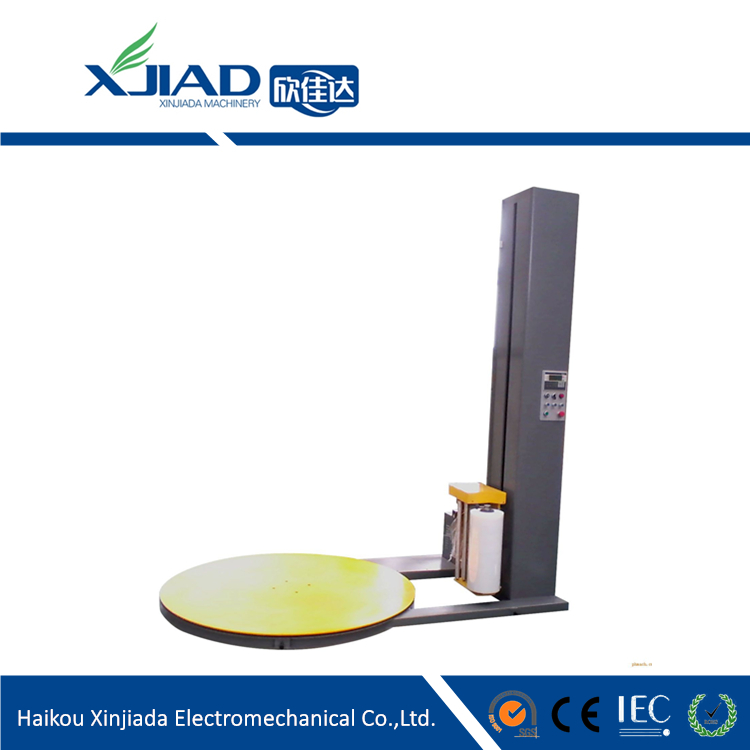

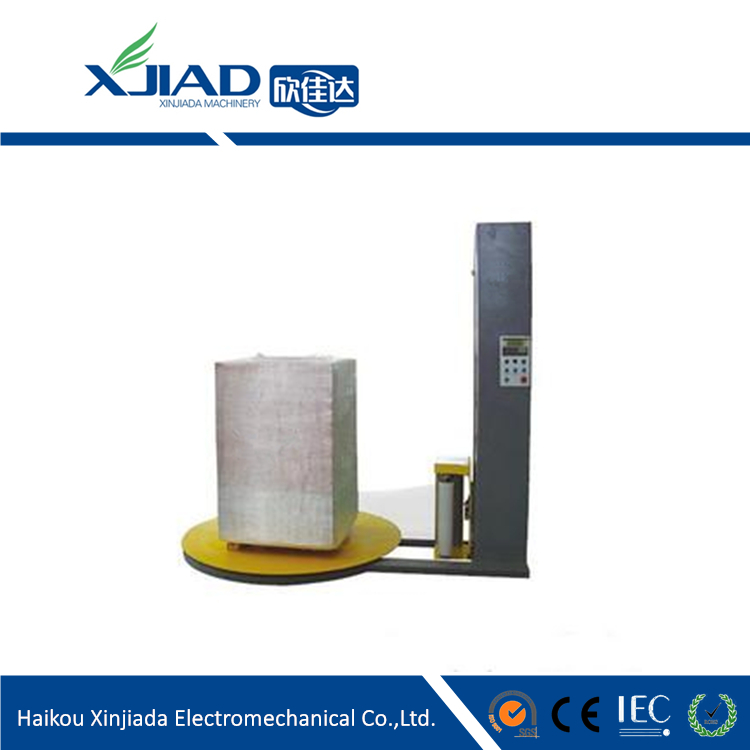

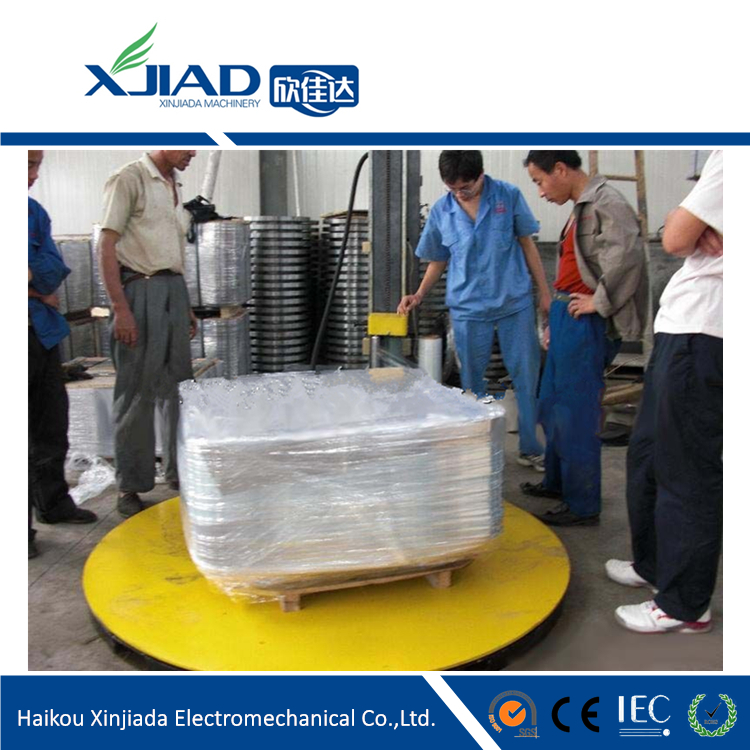

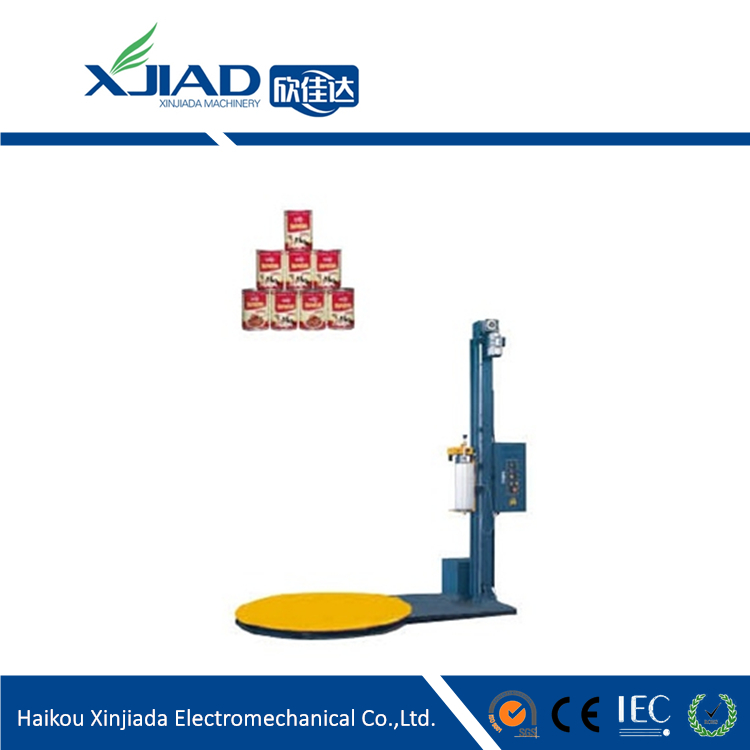

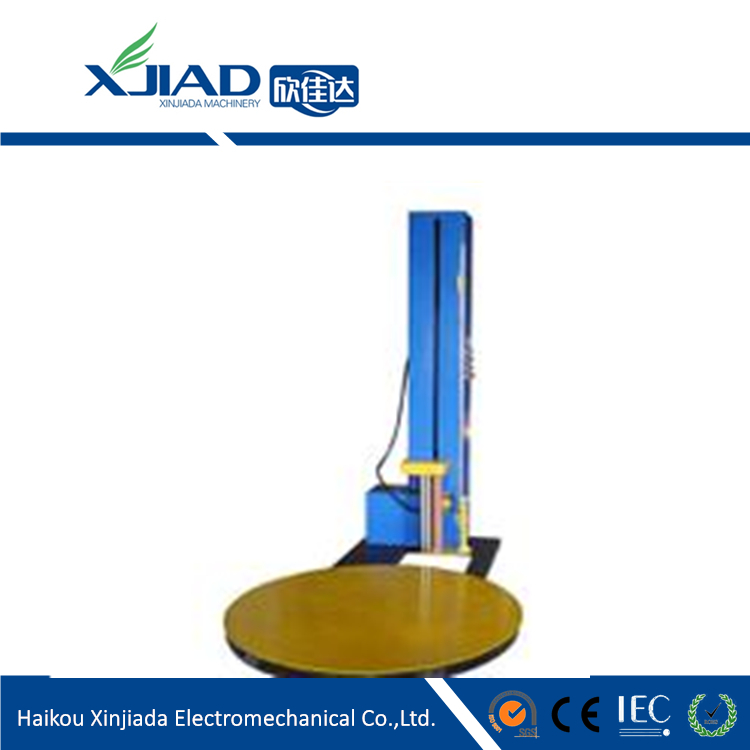

Tray film wrapping packaging machine is to wrap the goods through the pallet rotating wheel spins, thus realize coil wrapping package winding machine. Cooperate with stacker crane online use, implement product attachment packaging production line. Can improve the logistics efficiency, reduce the loss in the process of transportation. Has the advantages of dustproof, moisture, reduce the packaging cost.

Performance configuration:
1. The stretch film frame system, automatic film feeding, adjustable speed system control film tension;
2. The lifting chain structure column, lifting speed variable frequency adjustable respectively;
3. The control system, PLC programmable control push button operation panel, simple and clear;
4. Operating functions to run automatically, automatic machine set function;
5. Since the dynamic measurement cargo height and photoelectric screen function, turntable automatic reset;
6. There are manual strengthen winding function, can be set at the top/bottom winding turns, times up and down;

Technical parameters:
1. Applicable wrapping dimension: 2200mm(height), 1200mm (length) x 1200 mm(width) or 1400 mm(length) wide x 1100 mm(width).
2. Biggest packaging weight: 1500 ㎏.
3. Wheel size: 1600mm(diameter), 130mm(height).
4. Rotary speed: 0 ~ 15 RPM, adjustable.
5. Lifting speed: 0 ~ 3 m/min, adjustable.
6. Dynamic parameters: 3 x 380 v.
7. Dimension: 3000mm(height) x 2800mm(length) x 2600mm(width).
